China 6 Pot Brake Kit manufacturer

CP8530 4 Pot Auto Brake 355*32mm J Hook Disc Brake For Kia Proceed Front

Product Details:
Place of Origin: China
Brand Name: Jekit
Model Number: JCP8530
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: factory price
Packaging Details: Box Size 45*45*45cm
Delivery Time: 4-7 days
Payment Terms: Western Union/Paypal
Supply Ability: 600 sets per Month

Detail Information

Item Name: 4 Pot Brake Kit Caliper Number: CP8530
Brake Disc Diameter: 355mm Disc Thickness: 32mm
Fit Wheel Rim: Rim 18 Disc Material: Grey Cast Iron HT250
Caliper Material: Aluminum Caliper Color: Red Caliper
Delivery Time: 7-10 Days Bell Type: New Bell
Logo: Custom Logo
High Light:

CP8530 4 Pot Auto Brake


J Hook 4 Pot Auto Brake


Kia 4 Pot Auto Brake

Product Description

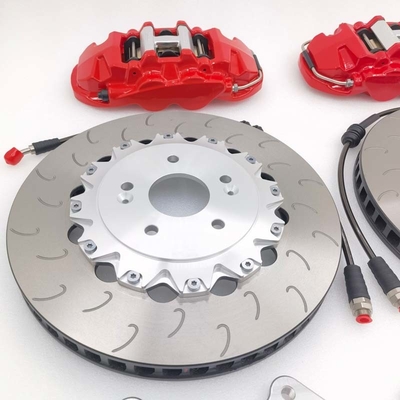

Auto Brake 4 Pots 355*32mm J Hook Disc Brake For Kia Proceed Front


How to install the caliper correctly? In fact, it's very simple, just three points. First, the opening of the oil drain screw (vent) must face upward under all installation conditions. Second, relatively, the external oil pipeline of the brake caliper must be located downward. Third, when the brake disc rotates, its rotation direction path must follow the direction from the small piston of the brake caliper to the large piston.


After installing the caliper, the air exhaust operation in the brake oil pipe and caliper is also very important. As long as there is a little air in the oil circuit and caliper, the effect of braking will not be brought into play at all, and it will also cause very dangerous situations such as soft brake pedal, insufficient rebound and ineffective braking.


After installation - precautions:


1. The newly installed brake calipers may have a slightly worse braking effect than the original ones, which is a normal phenomenon;


2. After the upgrade, during the running in period of 800-1000 km, try not to step on the brake suddenly, which is easy to damage the disc and deform the disc;


3. During the running in period, the braking effect increases gradually with the number of kilometers. The effect will be increased by 20% at about 300km, another 20% within 600km, and the running in will be completed at 800-1000km;


4. Do not wash the brake disc with water immediately after fierce driving, which is easy to deform the brake disc and cause shaking.



Item Name 4 pots Auto brake caliper
Caliper Material Aluminum
Caliper color Red Caliper
Bell and bracket color Silver Center Bell Bracket
Bell type

New Bell

Caliper Material Aluminum Caliper
Logo Custom logo
Disc type J hook
For Wheel size Rim 18 front

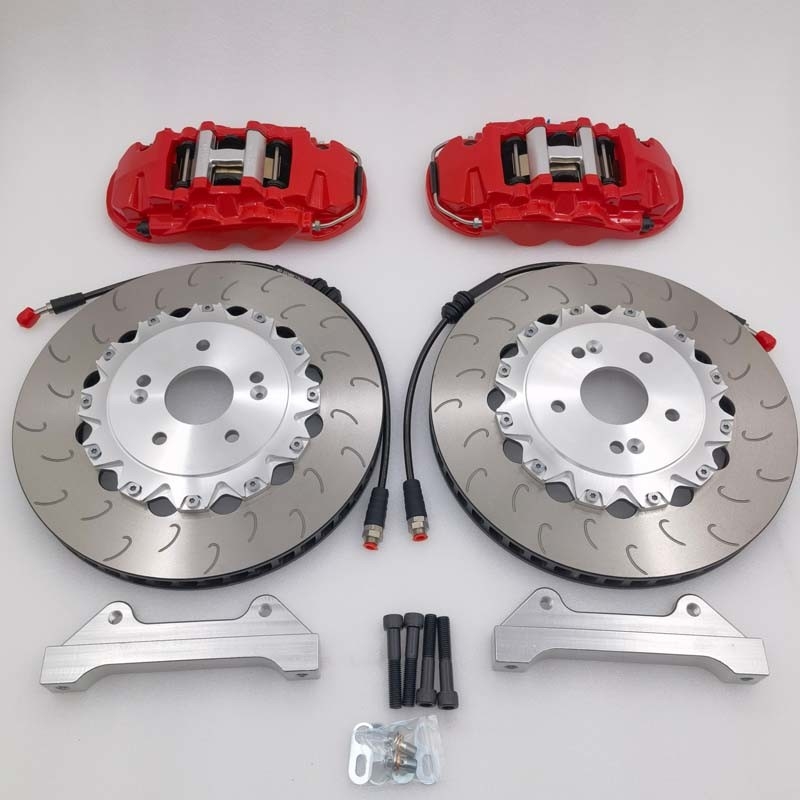

Full set included brake caliper/brake disc with center cap and bracket/
brake line/brake pads


CP8530 4 Pot Auto Brake 355*32mm J Hook Disc Brake For Kia Proceed Front 0CP8530 4 Pot Auto Brake 355*32mm J Hook Disc Brake For Kia Proceed Front 1CP8530 4 Pot Auto Brake 355*32mm J Hook Disc Brake For Kia Proceed Front 2
