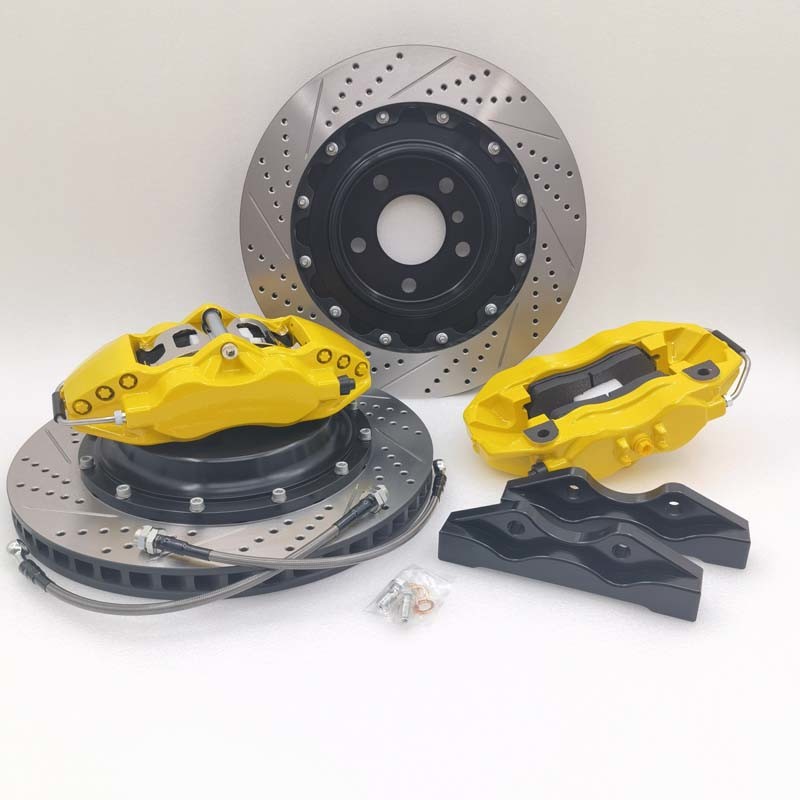

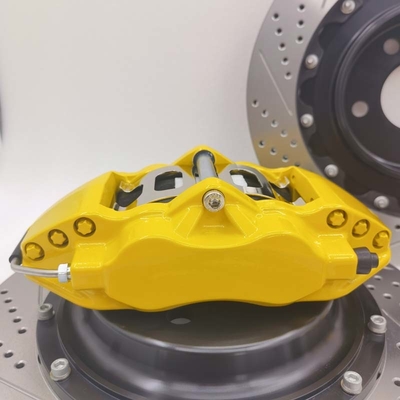

CP9202 4 Pot Brake Kit 355*28mm Rear Brake Drum 160mm For BMW F30

Product Description

4 Pot Brake Kit CP9202 355*28mm Rear Brake Drum 160mm For BMW F30

Brake installation steps are simple, and several steps are perfect for refitting

1. Remove the wheel

2. Remove the original brake caliper and original brake disc

3. Clean the surface of the wheel hub (remove the rust on the surface with a steel brush or copper brush, which is the contact surface with the brake disc)

4. Clean the surface of sheep horn ear (remove the rust or fixing glue on the surface with steel brush, copper brush, blade or fine sandpaper)

5. Install and fasten the AP brake caliper and brake disc (fasten the brake disc on the wheel hub with wheel nuts or bolts)

6. Measure the clearance between the brake caliper and the brake disc with a feeler gauge

The ideal clearance is: upper left = lower left = upper right = lower right, i.e. a = B

Generally, upper left = lower left ≥ 1.0mm, while upper right = lower right ≥ 1.0mm

(the upper and lower clearance can allow a deviation of 0.1-0.2mm)

7. If the clearance does not meet the above standards, please use thin shims to adjust the clearance between the brake caliper and the brake disc

Adjustment method: place the 0.5mm gasket between the caliper support and the sheep horn ear as appropriate

8. Fasten the brake caliper with a torque wrench (it is better to apply screw fixing glue to the thread to prevent looseness)

Tightening force: M10 screw 60N m

M12 screw 75n m

M14 screw 100N m

9. Remove the original brake hose

10. Install the brake steel throat and adjust the position and angle (it should be considered that the brake steel throat cannot touch the surrounding parts when the wheel moves up and down and rotates left and right)

11. Replace the brake oil, exhaust the air and clean the brake surface.

12. Install the wheel and use a torque wrench to tighten the wheel screws (or nuts) to the specified torque.
