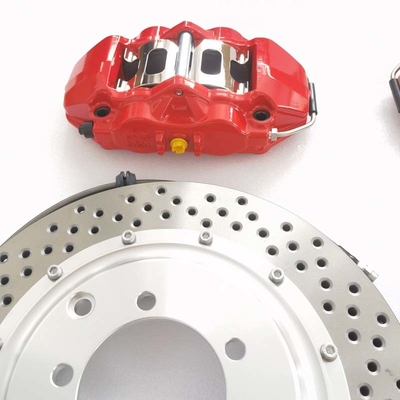

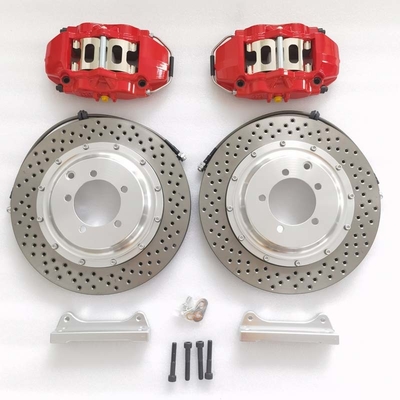

AP9202 4 Pots Brake Caliper With 355*28mm For Mitsubishi EVO8 Rear

Product Details:
Place of Origin: China
Brand Name: Jekit
Model Number: Ap9202
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: factory price
Packaging Details: Box Size 45*45*45cm
Delivery Time: 7-10 days
Payment Terms: Western Union/Paypal
Supply Ability: 600 sets per Month

Detail Information

Item Name: 4 Pot Brake Kit Caliper Number: AP9202 Brake
Disc Size: 355*28mm Car Model: EVO8
Fit Wheel: Rear Rim 18 Disc Material: Iron
Center Cap Bracket: 6061 Aluminum Caliper Color: Red Caliper
Caliper Craft: Forged Alloy
High Light:

AP9202 4 Pots Brake Caliper


Mitsubishi 4 Pots Brake Caliper

Product Description

4 Pots Brake Caliper AP9202 With 355*28mm For Mitsubishi EVO8 Rear​


The main components of disc brake system are the following: brake caliper (caliper), brake friction pad (brake pad), hydraulic oil, brake disc and piston.



Brake disc: if all four wheels are disc brakes, all four wheels will have a brake disc. The brake disc is a component rotating with the wheel. It can prevent the wheel from continuing to rotate. When we step on the brake, it will stop the car, so as to turn the kinetic energy of the car into heat energy.


Brake caliper: the brake caliper is a component attached to the front and rear of the brake disc. The calipers we usually see are basically single piston or double piston cars. Some high-end brands, such as Porsche, Mercedes Benz AMG series, BMW M series and Audi RS series, basically use 4 pistons or even 6 pistons. When we step on the brake pedal, pressure will be generated to force the brake oil to push the piston, and then push the brake pads to clamp the brake disc inward to achieve the effect of braking deceleration.


Brake pad: the brake skin is a wear-resistant part in contact with the brake disc, which belongs to wear and tear products. As shown in the figure, it is installed in the brake caliper. The pressure exerted by the brake skin on the brake disc is the key action of vehicle deceleration.


Brake oil pipes: these oil pipes work even if they deliver brake oil. When the brake pedal is pressed, the brake oil will flow to the brake caliper on each wheel through the pipeline, and push the piston in the caliper to move to clamp the brake disc.


After introducing the composition of the braking system, how can we enhance the braking effect? We know that when the car is driving, some emergencies are unpredictable. Sometimes, the braking distance may differ by 1 meter, which is the maximum distance between people.


First, we can increase the radius of the brake disc, because the braking force is equal to the force applied by the brake skin multiplied by the distance from the center of the wheel. Generally, increasing the distance from the center is a good thing in this case. Therefore, in the market, the radius of many modified brake discs is larger than that of the original brake disc, so that the larger brake disc can provide greater braking force. Secondly, we can increase the area of caliper piston. This is what we usually call changing the caliper. Increasing the size and number of pistons in the caliper means that more areas apply specific pressure. If the pressure remains constant and the area increases, the applied force will increase accordingly. Then increase the pressure of oil pipe and pipeline, and the braking force will also increase. If you can increase the pipeline pressure, such as using vacuum brake booster, you can indirectly optimize the braking effect. The last is to increase the friction coefficient between brake skin and disc. Simply put, it is to replace the brake disc, such as carbon ceramic brake disc (preferred by tuhao). In addition, replace the brake skin, which is also the simplest way to increase the friction coefficient between the brake skin and the brake disc.


Three principles for identifying the direction of the brake caliper: 1. Under all installation conditions, the opening of the oil drain screw (vent) must face upward; 2. On the contrary, the position of the external oil pipeline of the brake caliper must face downward; 3. When the brake disc rotates, its rotation direction path must follow the direction from the small piston to the large piston of the brake caliper.



Country Made in China
1 year
caliper name
Product name
4 Pots AP9202 Brake Kit
Brake disc size 355*28mm
Disc design Drilled Disc
Caliper color
Red color
Caliper material
Disc material cast iron
Wheel rim Rim 19
Function Car Brake
Car model


 AP9202 4 Pots Brake Caliper With 355*28mm For Mitsubishi EVO8 Rear 0AP9202 4 Pots Brake Caliper With 355*28mm For Mitsubishi EVO8 Rear 1AP9202 4 Pots Brake Caliper With 355*28mm For Mitsubishi EVO8 Rear 2
