China 6 Pot Brake Kit manufacturer

4 Pots Brake Caliper Kit 355*28mm Brake Disc For Golf

Product Details:
Place of Origin: China
Brand Name: Jekit
Model Number: Megane
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: Factory Price
Packaging Details: Box Size 45*45*45cm
Delivery Time: 5-7 days
Payment Terms: Paypal, T/T, Western Union
Supply Ability: 600 sets Every Month

Detail Information

Item Name: Megane Brake Caliper Caliper Pots: 4 Piston
Disc Size: 355*28 Caliper Material: Alloy
Fit Wheel: Rim 18inch Disc Material: Grey Cast Iron HT250
Caliper Number: Megane Caliper Caliper Color: Red Color
High Light:

4 Pots Brake Caliper Kit


Golf Brake Caliper Kit


4 Piston Brake Caliper Kit

Product Description

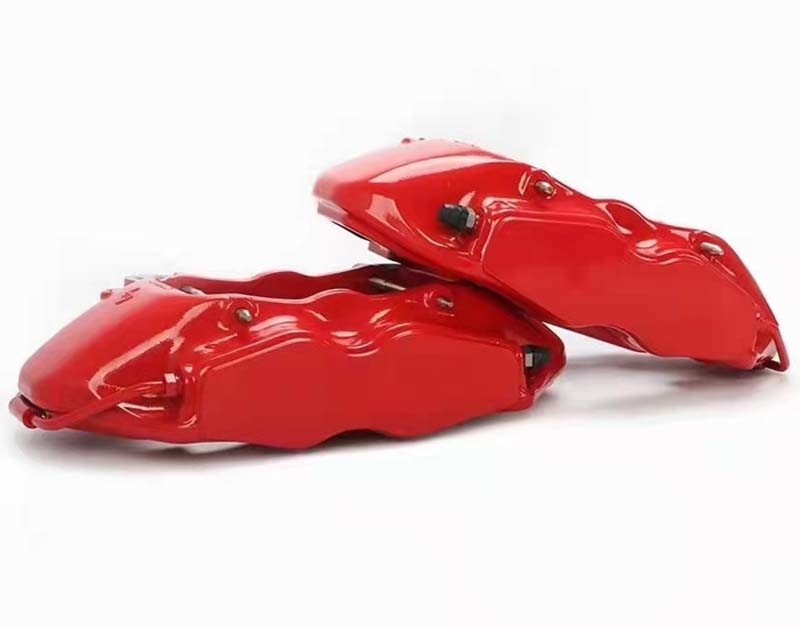

4 Pots Brake Caliper Kit Megane Fit 355*28mm Brake Disc For Golf


There's a lot more to effectively using your car's braking system than simply stomping on the pedal when a squirrel darts out in front of you. The braking systems of cars, trucks and motorcycles are made up of a number of parts that translate the driver's actions into physical force that stops the car. One of those brake parts is your vehicle's brake pads.

Brake pads are a key brake part because they are the component that contacts and applies pressure and friction to a vehicle's brake rotors -- those flat, shiny discs that you can sometimes see just behind the wheels of some vehicles. The pressure and friction applied to the brake rotor is what slows and stops the wheel. Once the wheels stop turning, the vehicle stops moving, too. Though the role of brake pads as braking parts is pretty simple, the brake pads themselves are anything but.

B­ecause of how fast a vehicle's wheels rotate and how much a typical car or truck weighs, brake pads undergo extreme stress every time you slow down or come to a stop. Think about it: Would you want to grab and hold on to a heavy metal disc that was spinning really fast? Imagine slowly squeezing that disc until the vehicle rolls to a halt -- it's a thankless job, but brake pads do it repeatedly for thousands and thousands of miles without complaint.


Several problems needing attention when installing and refitting the brake system.


1. Before installing the modified brake system, the shaft head must be polished smoothly, otherwise the contact between the shaft head and the brake disc will be uneven, and finally the brake system will shake and vibrate.


2. Pay attention to the direction of the disc. The function of the air guide groove is to dissipate heat. The working principle is that the air guide groove constantly throws out the heat of the brake disc as the vehicle moves forward. Therefore, we must pay attention to the direction. It is to throw out, not to bump the wind in. However, if you choose vinic brake disc, you don't need to worry about this aspect, because all vinic products have been marked on the front and back sides. Just look at the label during installation, as shown in the figure:


3. The emptying nozzle of the brake caliper must be upward, because the air moves upward during emptying. Pay attention to this. In addition, when emptying, it is recommended to use the traditional foot and hand emptying method instead of the oil changer.


4. Generally, the pressure leakage test will be carried out when the modified calipers leave the factory, so generally, the new genuine original calipers will not leak oil. The oil leakage of the caliper is mainly in the piston, not in the nozzle. Moreover, the drain nozzle may also be damaged due to improper operation during installation. Therefore, the oil leakage from the drain nozzle is not within the scope of the manufacturer's warranty. If there is oil leakage in the nozzle, it can be solved according to the third point, or it can be solved by replacing the new emptying nozzle. The new emptying nozzle is provided by the manufacturer free of charge. This can be obtained from local dealers.


5. Brake running in. The correct method of brake running in is when the brake is installed correctly. Accelerate the car to about 100 kilometers per hour, then brake to 50 kilometers, then accelerate to 100 kilometers, and then slow down to 50 kilometers for 7-10 times. The running in can be completed. However, the newly modified brake must go through 500 ~ 1000 km running in to achieve the best state. In addition, remember not to use the method of violent sudden braking to open the disc for the new brake. This method is easy to carbonize the material of the brake pad. In addition, the braking performance of the newly installed braking system may be only 70% of that in the best state, so pay attention to the safe distance.


6. When installing the brake system, be sure to carefully check whether the brake oil pipe will touch and scratch the wheel hub, because this may cause the brake oil pipe to be scratched through, which is a very serious problem. It is also necessary to carefully check whether the ABS sensor line has the opportunity to scratch the inner side of the wheel hub after disassembly, which is also a very serious safety hazard.


7. Jitter of the brake system: there are many reasons for the jitter of the brake system. One is that after intense braking, the brake disc flushes without cooling, resulting in the deformation of the brake disc. This situation is easy to occur in car washing. Therefore, after intense driving, we can't immediately flush the brake system with a faucet. We have to wait about 10 minutes for it to cool down. In another case, the dynamic balance data of the wheel hub is inaccurate, resulting in the shaking of the steering wheel when braking. This situation is most likely to be ignored. Generally speaking, the shaking of the car when accelerating is mostly related to the half axle. If the car slides without stepping on the accelerator, and the shaking of the steering wheel is mostly related to the dynamic balance of the wheel rim. If the steering wheel shakes when braking, check the dynamic balance of the wheel hub and whether the brake disc is deformed. If the brake disc is deformed, The disc needs to be rewritten, that is, the brake disc needs to be polished. It is also called brake disc dynamic balance, which is solved in this way.


Product Desription
Caliper Model: Megane Caliper
Craft: Forging Aluminum
Number of Psitons: 4 pots
Piston Size: 38.1mm, 41.8mm
Suits: 355*28mm
Pad Depth: 52mm


4 Pots Brake Caliper Kit 355*28mm Brake Disc For Golf 04 Pots Brake Caliper Kit 355*28mm Brake Disc For Golf 14 Pots Brake Caliper Kit 355*28mm Brake Disc For Golf 2
