China 6 Pot Brake Kit manufacturer

Aluminum 4 Pot Brake Kit 330*28mm Disc For Ford Mk2 Front

Product Details:
Place of Origin: China
Brand Name: Jekit
Model Number: JK9200
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Factory price
Packaging Details: Box Size 45*45*45cm
Delivery Time: 7-10 days
Payment Terms: Western Union/Paypal, T/T
Supply Ability: 600sets per Month

Detail Information

Item Name: 4 Pot Brake Kit Caliper Pots: 4 Pots
Disc Size: 300*28/330*28/355*28mm Caliper Material: Aluminum
Fit Wheel: Rim 17/18 Disc Material: Grey Cast Iron HT250
Center Cap Bracket: 6061/7075Aluminum Color: Red/Yellow/Custom Color
High Light:

Aluminum 4 Pot Brake Kit

,

Ford Mk2 4 Pot Brake Kit

,

HT250 4 Pot Brake Kit

Product Description

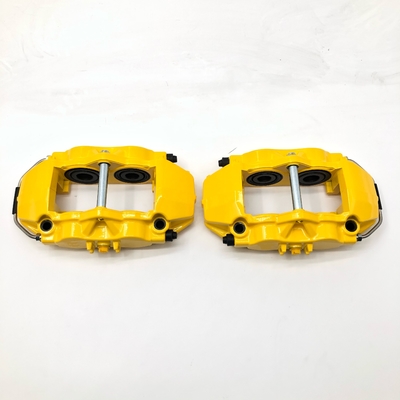

ALuminum 4 Pot Brake Caliper 330*28mm Disc For Ford Mk2 Front



Item Name 4 pot 9200 brake kit
Pots 4 pistons
Material Aluminum/iron
Bell type regular/flower/floaing/custom bell
Bell and bracket color custom color
Weight 26kg
Color Red/Yellow/Black/Blue/custom color
Size 300*28/330*28/355*28mm
Disc type J hook/Drilled/Grooved/Slot straight lines/custom disc type
For Wheel size Rim 17/18/19/20 inch
Full set included 1 pair brake caliper/1 pair brake disc with center cap and bracket/
1 pair brake line/1 set brake pads



Refitting brake:

This is the upgraded brake project recommended by professional refitting technicians. The brake is more in line with the needs of vehicles, the brake linearity is improved, the stability is improved, the braking distance is shortened and the braking response is faster.



When refitting the brake, first select from the strength. The brake strength depends on the bearing capacity of the vehicle body and the tire friction. If the strength exceeds the tire friction, the brake cannot play. If there is no ABS system at this time, the tire will often slip prematurely. If the strength is too high, it will affect the shelf life (this is required for civil refitting. For racing, it is OK only to consider that the car can adhere to the race schedule) .



Secondly, look at the weight and horsepower of the car, then select the brake disc and caliper that the rim can fully accommodate, and then select the material model.



Perforated and scribed discs have good heat dissipation performance, expensive price and slightly faster loss. At present, there are approachable metal discs and special material discs, including special alloy discs, ceramic discs and carbon fiber discs, which are expensive and can not be used without competition



Calipers also need to be fully accommodated by the rim. Generally, they are 2-piston calipers, 4, 6, 8 and other multi piston calipers, including large, medium and small pistons, such as small 6-piston calipers. The multi piston calipers of small pistons have excellent linearity. As the saying goes, slow down a little and slow down a little more. Press more and slow down a little faster. With the stroke of the brake, the brake strength increases, Large piston calipers have good braking explosive force. In many tracks, the braking time is relatively short. If you need strong explosion, you can choose large piston calipers



In addition, the brake oil circuit of general civil vehicles is rubber hose. Because it is somewhat elastic and has poor ability to withstand high pressure, after changing the brake hose, the brake will be more linear and can withstand stronger braking force. Only after refitting the brake master cylinder can it be safe.



Aluminum 4 Pot Brake Kit 330*28mm Disc For Ford Mk2 Front 0

Aluminum 4 Pot Brake Kit 330*28mm Disc For Ford Mk2 Front 1

Aluminum 4 Pot Brake Kit 330*28mm Disc For Ford Mk2 Front 2
