355x12 Drilled Brake Disc For Rear Wheel PCD 207-12 M6 Friction Surface 56

Product Details:
Place of Origin: China
Brand Name: Jekit
Model Number: JKDR001
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Factory price
Packaging Details: 40*40*20cm
Delivery Time: 5-8 days
Payment Terms: Western Union,Paypal, T/T
Supply Ability: 600 sets Per Month

Detail Information

Item Name: Auto Brake Disc Disc Size: 355x12 Mm
Disc Materials: Grey Cast Iron HT250 Use: For Street Rear
Disc Style: Drilled For Car: Many Car Model
PCD: PCD 207-12*M6mm Front Rear: Rear
High Light:

355x12 Drilled Brake Disc


207-12 Drilled Brake Disc


M6 Friction Surface Auto brake disc

Product Description

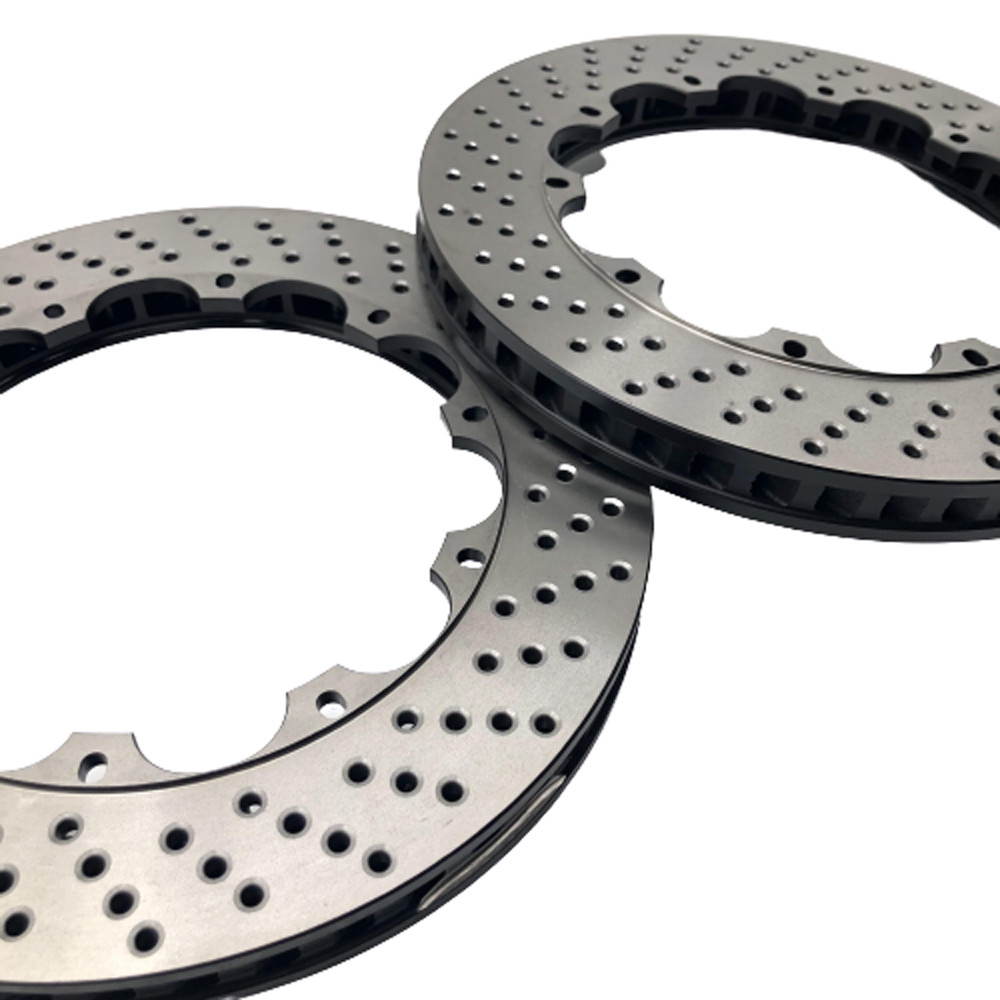

Drilled Disc Rotors 355x12 For Rear Wheel PCD 207-12*M6mm
355x12mm disc data: PCD 207-12*M6mm. Locating edge 180mm.-1mm step,Friction surface 56mm

Material HT250
Disc data 355x12mm disc data: PCD 207-12*M6mm. Locating edge 180mm.-1mm step,Friction surface 56mm
Certification ISO9001/TS16949
Package Box+carton+pallet;
PortQingdao or others;

1.Sample check;
2.Before production, mould and model check;
3.Technicians self check in production;
4.Engineer spot check;
5.Packing check;
6.Check before shipping.

Classification and braking effect of brake disc
Disc brake disc is divided into solid disc (single disc) and air duct disc (double disc), perforated ventilation disc, scribed ventilation disc, floating ventilation disc and ceramic ventilation disc. Solid disks are easy for us to understand. Frankly, it is solid. As the name suggests, the air duct board has ventilation effect. From the appearance, it has many holes leading to the center of the circle on the circumference, which is called air duct. When the vehicle is running, the air passes through the air duct to achieve the purpose of heat dissipation, which is better than the solid heat dissipation effect.
Drilled brake disc
The main purpose of punching the perforated brake disc is to have a stronger heat dissipation effect. Higher intensity braking will lead to a sharp increase in the temperature of the brake disc, so more air flow is required for heat dissipation. The effect of ventilation disc alone can not be satisfied. Generally, when multi piston brake caliper is used, more efficient perforated ventilation disc is required.
Ventilated brake disc
The ventilated brake disc is ventilated and can play a better heat dissipation effect than the solid disc. The side of an ordinary ventilation disc is as flat as a solid disc. The ventilation holes can be seen in the longitudinal direction, and the structure inside is intricate and alternating, because it is necessary to ensure the heat flow and the rigidity of the brake disc at the same time.
Casting standard of brake disc
As for the casting standard of brake disc, the brake disc material on the Chinese market mainly adopts the Chinese gray cast iron 250 standard, referred to as HT250, which is equivalent to the American G3000 standard. Gray cast iron has good casting performance, vibration damping, wear resistance, good cutting performance and low notch sensitivity, and has been widely used in the automotive brake Market, The main constituent elements of gray cast iron are carbon C, silicon Si and manganese Mn. The important standard for testing brake discs is carbon content, which directly affects the friction coefficient. At present, the carbon content of ordinary brake discs on the market is about 3% .
Why does the brake disc rust and the solution
The brake disc is exposed to the sun and rain for a long time, and the working environment is poor. Especially if it is parked for a long time, it is easy to generate some rust on the surface, which is a normal phenomenon and there is no need to fight. We can remove rust by continuous braking during driving on the road of safe driving, because the disc brake is braked by the friction between the brake caliper and the brake pad, and the rust can be worn off under multiple braking. However, if the brake disc is seriously rusted, this method is not applicable. If forced braking, the brake pedal and steering wheel will feel obvious vibration. In this case, we need to go to the maintenance shop for treatment or replace the brake disc.
Daily maintenance method of brake disc
The brake disc will generate a lot of heat when braking, so don't wash the car immediately after braking. Turn off the engine to reduce the surface temperature of the brake disc and prevent the high-temperature brake disc from deforming and cracking due to thermal expansion and contraction in contact with cold water.
In addition, the best way to improve the service life of the brake disc is to maintain good driving habits and try to avoid sudden braking and sudden stop.

How to judge that the brake disc needs to be replaced?
1. Observe the brake disc warning light to judge: normally, the brake disc indicator light is off. When the brake disc is faulty or excessively worn, the light will be on and off after repair. When the warning light is on, the brake disc has been worn to the limit, and the braking effect has decreased, which greatly affects the driving safety. Therefore, we suggest to regularly check the wear condition of the brake disc to see whether it can be used, rather than just trust the warning light.
2. Check the thickness of the brake disc: most brake disc products have wear indicators, that is, three small pits will be distributed on the disc surface. Measure the depth of the small pit with a vernier caliper, which is 1.5mm. In other words, the total wear depth on both sides of the brake disc reaches 3mm. In case of quasi wear and complete wear as shown in the figure below, we recommend replacing the brake disc in time
3. Listen to the sound: if the light braking is accompanied by the silky sound or roar of "iron rubbing iron" (it may also be the effect of running in of the brake pad at the beginning of installation), the brake pad must be replaced immediately. Because the limit marks on both sides of the brake pad have directly rubbed the brake disc, it proves that the brake pad has exceeded the limit.
