China 6 Pot Brake Kit manufacturer

380x34mm Disc Brake Caliper Bracket Center Hat For Front Wheel BMW BENZ SUBARU

Product Details:
Place of Origin: China
Brand Name: Jekit
Model Number: JKCBRB012
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Factory price
Packaging Details: Box Size 45*45*45cm
Delivery Time: 5-7 days
Payment Terms: Western Union/Paypal
Supply Ability: 600 sets Every Month

Detail Information

Item Name: Disc Center Hat And Bracket Application: Custom According To Car Modle
Disc Size: 365x34/380x34/405x34mm Fit Wheel: Front And Rear
Center Cap Bracket: Aluminum Color: Black /Red/Yellow/Custom Color
Center Hat Type: Original / Flower /floating /dump
High Light:

380x34mm disc brake caliper bracket

,

BMW Disc brake caliper bracket

,

BMW Center Hat drilled Brake rotors

Product Description

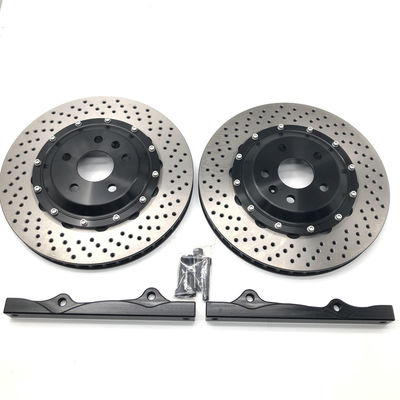

380x34 Disc Center Hat Bracket For Front Bmw / Benz / Subaru





Disc Feature:



Matrial: Grey cast iron HT250
Disc size : 365x34 ,380x34 . 405x34
Applications: Street driving, car front wheels





Center Hat



Jekit has four different designs.
1. Pattern: unique nest fan diversion design, reducing weight by 35% and increasing heat dissipation area by 30%.
2. Original: round design, light weight.
3. With drum joint: generally applicable to the rear wheel of automobile.
4. Floating style, floating design, lighter weight, 50% increase in heat dissipation area, effectively improve heat dissipation effect and reduce jitter.





Bracket:


Material: Aerial 6061 Aluminum Alloy
Craft: By Forging

Brake hose:
Material: Inside special rubber; Outside wrapped with steel cover knitted by steel wires





Product introduction



Item Name Brake Disc with Center Cap and bracket
Disc Size  365x34 , 380x34 ,405x34 mm
Disc type/Center type J hook/Drilled/Grooved/Slot straight lines/custom disc type
Round/Flower/Floating/Custom design center cap
What data need to make center bell Disc diameter/thickness/PCD/Locating edge/Depth
Full set included

1 pair brake caliper/1 pair brake disc with center cap and bracket/

1 pair brake line/1 set brake pads





Disc Brake


Brake rotors of disc brakes rotate with the wheels, and brake pads, which are fitted to the brake calipers, clamp on these rotors to stop or decelerate the wheels. sThe brake pads pushing against the rotors generate friction, which transforms kinetic energy into a thermal energy.





Casting standard of brake disc



As for the casting standard of brake disc, the brake disc material on the Chinese market mainly adopts the Chinese gray cast iron 250 standard, referred to as HT250, which is equivalent to the American G3000 standard. Gray cast iron has good casting performance, vibration damping, wear resistance, good cutting performance and low notch sensitivity, and has been widely used in the automotive brake Market, The main constituent elements of gray cast iron are carbon C, silicon Si and manganese Mn. The important standard for testing brake discs is carbon content, which directly affects the friction coefficient. At present, the carbon content of ordinary brake discs on the market is about 3%.



Classification and braking effect of brake disc

Disc brake disc is divided into solid disc (single disc) and air duct disc (double disc), perforated ventilation disc, scribed ventilation disc, floating ventilation disc and ceramic ventilation disc. Solid disks are easy for us to understand. Frankly, it is solid. As the name suggests, the air duct board has ventilation effect. From the appearance, it has many holes leading to the center of the circle on the circumference, which is called air duct. When the vehicle is running, the air passes through the air duct to achieve the purpose of heat dissipation, which is better than the solid heat dissipation effect.


Introduction to retrofitting centre cap and caliper holder



The center cap and caliper bracket are the components connecting the modified caliper to the vehicle. Each set of center cap and caliper bracket is customized according to the model, caliper model and disc data. Therefore, if you want the whole set of brakes to be perfectly installed in the wheel, the data requirements for the center cap and caliper support need to be very accurate.





Material classification (center hat and bracket )



Jekit's center cap and caliper support are mainly made of the following materials: aluminum alloy 6061-T6, aluminum alloy t-7075 and 45 steel.

Aluminum alloy has the characteristics of high strength, light weight and good heat dissipation. For the braking system, aluminum alloy has great advantages, so aluminum alloy is used in most cases.
6061-T6: aluminum alloy element accounts for 97.9%, magnesium element accounts for 1%, silicon element accounts for 0.6%, and 0.28% copper and 0.2% chromium are added.
T-7075: the main aluminum and zinc metal elements account for 90% and 5.6% respectively, while magnesium accounts for 2.5%, copper accounts for 1.6%, chromium accounts for 0.23%, and finally the rest are silicon, manganese, titanium and other metal elements.
Generally speaking, the strength of 7075 aluminum alloy is higher than that of 6061 aluminum alloy, which is mainly because the content of aluminum alloy in 7075 aluminum alloy is nearly 8% less than that in 6061.
45 steel is generally applied to supports with limited data. (for example, there are few threads and the length is short. The whole strength needs to be guaranteed, which can not be achieved by aluminum alloy)





Why refit car brakes



1. Poor braking performance of the original car

Because the original vehicle has long braking distance, heavy braking, unsatisfactory effect and service life, unstable braking and unable to brake the vehicle, the safety of continuous braking is reduced, and the original vehicle has large abnormal noise and poor heat dissipation.

2. Weakness of original brake

The biggest weakness of the original brake is that the braking force is too short from the initial state to the limit, which is called "very non-linear" in the language commonly used to describe the power. As the saying goes, stepping on the brake lightly is not enough, and stepping on the brake heavily is too much.

For most of the original brakes, after you press the brake pedal to the bottom with one foot, the braking force generated by the brake system itself often far exceeds the friction limit of the tire. Therefore, the original brake can easily let the ABS system intervene in the work: when you brake to the bottom with one foot, you will always hear all kinds of "cluck cluck" noises of the ABS master cylinder, The brake pedal continuously feeds back the rebound strength, and the ABS system continuously performs the repeated action of "brake release brake release" on the brake caliper of each tire.

380x34mm Disc Brake Caliper Bracket Center Hat For Front Wheel BMW BENZ SUBARU 0

380x34mm Disc Brake Caliper Bracket Center Hat For Front Wheel BMW BENZ SUBARU 1

380x34mm Disc Brake Caliper Bracket Center Hat For Front Wheel BMW BENZ SUBARU 2
