China 6 Pot Brake Kit manufacturer

362*32mm Dragon Slot Type III Floating 6 Pot Brake Kit For C117

Product Details:
Place of Origin: China
Brand Name: Jekit
Model Number: GT6
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: factory price
Packaging Details: Box Size 45*45*45cm
Delivery Time: 4-7 days
Payment Terms: Western Union/Paypal
Supply Ability: 600 sets per Month

Detail Information

Item Name: 6 Pot Brake System Caliper Piston: 6 Pots
Disc Diameter: 362mm Caliper Material: Aluminum Cast
Wheel Rim: Rim Wheel 19 Inch Center Cap Design: Floating
Disc Design: Dragon Slot Caliper Color: Sliver Caliper
Delivery Time: 7 Days
High Light:

Floating 6 Pot Brake Kit


Dragon Slot 6 Pot Brake Kit


6 Pot Brake Kit C117

Product Description

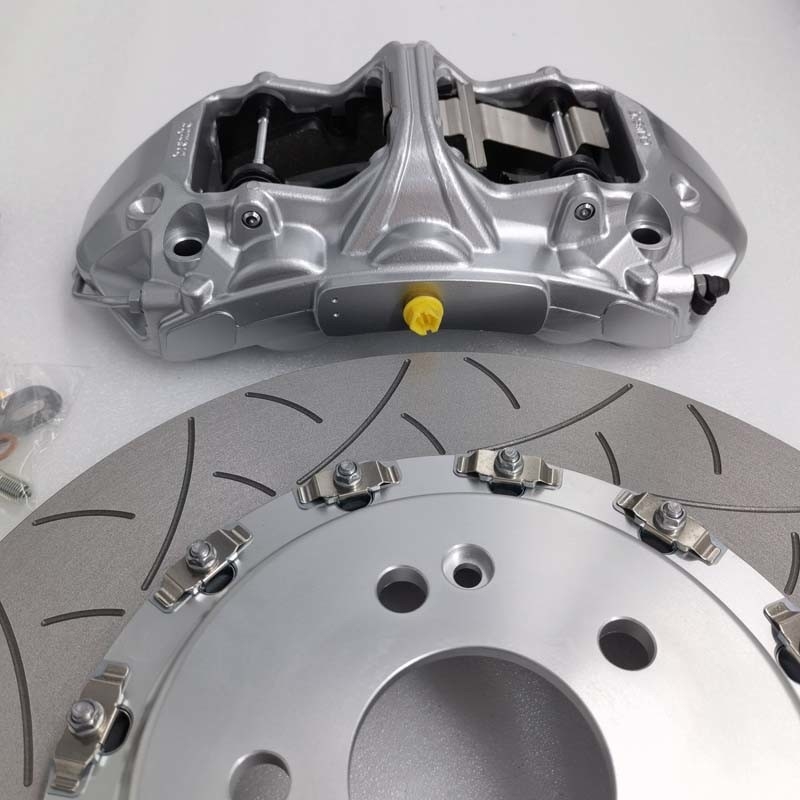

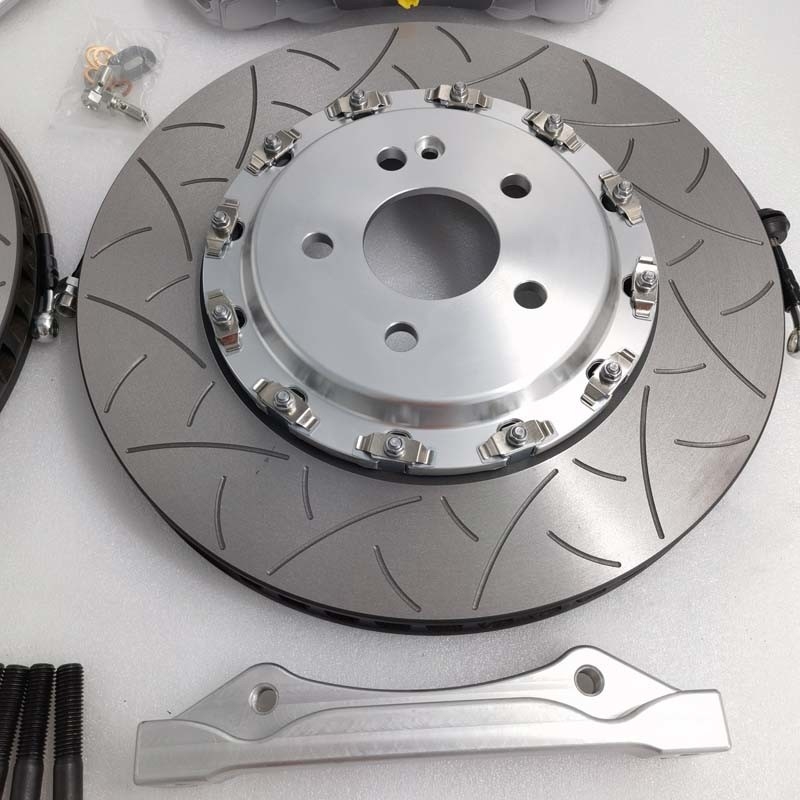

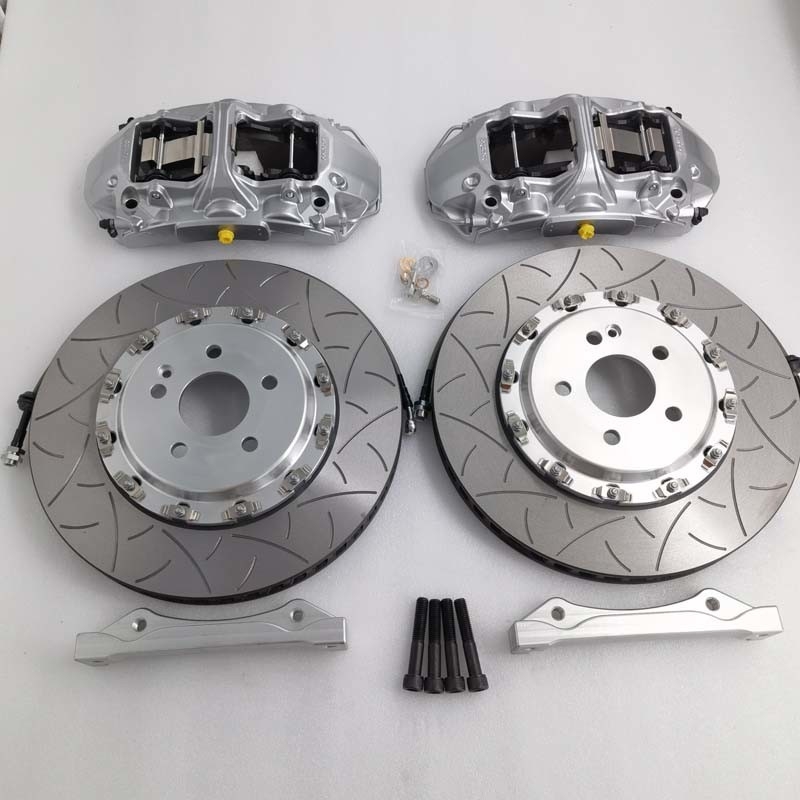

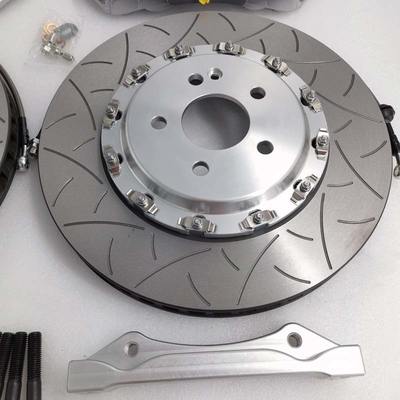

6 Pot Brake Kit 362*32mm Dragon Slot Type III Floating For C117


Double-check the caliper guide pins for proper torque. It’s important to tighten the caliper guide pin slide bolts to your vehicle’s recommended torque specification before completing the installation.
If your kit doesn’t include a caliper bracket, be sure to clean the original bracket thoroughly with brake parts cleaner and lubricate the guide pins with hi-temp caliper grease.

Use a brass wire brush and brake parts cleaner to remove any rust and brake pad residue from the bracket. Also, install new abutment clips if necessary.

Some applications call for replacing the brake hose-to-caliper crush washer. A new crush washer creates a tight seal that prevents leaks. Your vehicle’s service manual should explain when to do this.

Check the rubber dust boots that cover the base of the guide pins. Dust boots allow lubricant to escape and debris to enter the system if damaged or unsecured. This can lead to premature wear of the guide pins.

Use high-temp grease to lubricate the abutment clips in the areas where the brake pad backing plate makes contact.
Bleed your brake lines according to your vehicle’s service manual. Brake calipers have small orifices within them that can get clogged by debris that has accumulated in the system. Poorly maintained brake fluid absorbs moisture from the atmosphere. Over time, this causes rust to form. Bleeding the brake lines prior to installing new calipers removes the accumulated water and debris, which ensures proper function and maximum performance from your brakes.

Check your car’s service manual for the recommended torque specifications and double-check all fasteners. Be sure to pay special attention to bolts that call for thread-locker. Hi-temp thread locker fluid or paste is often used on these critical fasteners to ensure they do not back out due to the extreme stresses that brakes are subject to. Excessive heat, vibration, and torque can cause caliper bolts to come loose if they are not properly treated and torqued before use.


Product Desription
Model: Brembo GT6 Caliper
Craft: Casting Aluminum Alloy
Number of Psitons: Six Pistons
Piston Size: 38.1mm, 31.8mm, 28.6mm
Suits: 355*32mm/362*32mm/380*34mm/405*34mm
Pad Depth: 47mm/57mm/65mm


362*32mm Dragon Slot Type III Floating 6 Pot Brake Kit For C117 0362*32mm Dragon Slot Type III Floating 6 Pot Brake Kit For C117 1362*32mm Dragon Slot Type III Floating 6 Pot Brake Kit For C117 2

Company Profile

Guangzhou Yuanxing Industrial Co.Ltd was established in 2017 and is located in Room 302, building 5, No. 7, Laowu street, Dongping village, Yongping street, Baiyun District, Guangzhou ,China. The location is very excellent and the transportation is convenient. We have very rich industry experience and is a trusted supplier. The company has production equipment and skilled front-line employees. Our boss has been engaged in the transformation of automobile braking system since 2011, have about 10 years of experience in this industry. Since 2017, we have set up our own factory, which can provide you with the best price and the best quality products. We specialize in producing aluminum alloy center cap and bracket, which can be customized according to different car models. Meanwhile we also sell complete set brake kit included brake calipers/brake disc rotors/brake pads/brake hose/aluminum center cap and brackets. Our products have strict quality control from the procurement of raw materials to the sale of finished products. Our company purpose is customer first, trying our best to meet the needs of customers.

362*32mm Dragon Slot Type III Floating 6 Pot Brake Kit For C117 3362*32mm Dragon Slot Type III Floating 6 Pot Brake Kit For C117 4362*32mm Dragon Slot Type III Floating 6 Pot Brake Kit For C117 5


Q: Which countries are your products mainly sold to?

A: We maniny sell to Europe, UK, USA, Southeast Asia
