Customize Car Center Cap 410mm According To Model And Brake Disc Vw

Product Details:
Place of Origin: China
Brand Name: Jekit
Model Number: JKCBR0012
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Factory price
Packaging Details: Box Size 45*45*45cm
Delivery Time: 5-7 days
Payment Terms: Western Union/Paypal
Supply Ability: 600 sets Every Month

Detail Information

Item Name: Center Hat Application: Custom According To Car Modle
Disc Size: 285/295/300/330/345/355/360/362/365/370/380/390/405/410mm Fit Wheel: Front And Rear
Center Cap Bracket: Aluminum Color: Black /Red/Yellow/Custom Color
High Light:

410mm Car Center Cap


Brake Disc Vw Car Center Cap

Product Description

Customize The Center Cap According To The Model And Brake Disc Vw





Matrial:Al 6061/7075
Professional Perfomance Auto parts supplier
Ford Engines



Product introduction


Item Name center hat  Color Gold, Silver, Black, Blue
Material aluminium alloy Certificate ISO9001
Position Front/Rear Quality 100% Tested
Car Make Auto car Place of Origin Guangdong, China (Mainland)

Introduction to retrofitting centre cap


The center cap and caliper bracket are the components connecting the modified caliper to the vehicle. Each set of center cap and caliper bracket is customized according to the model, caliper model and disc data. Therefore, if you want the whole set of brakes to be perfectly installed in the wheel, the data requirements for the center cap and caliper support need to be very accurate.



Material classification


Jekit's center cap and caliper support are mainly made of the following materials: aluminum alloy 6061-T6, aluminum alloy t-7075 and 45 steel.

Aluminum alloy has the characteristics of high strength, light weight and good heat dissipation. For the braking system, aluminum alloy has great advantages, so aluminum alloy is used in most cases.
6061-T6: aluminum alloy element accounts for 97.9%, magnesium element accounts for 1%, silicon element accounts for 0.6%, and 0.28% copper and 0.2% chromium are added.
T-7075: the main aluminum and zinc metal elements account for 90% and 5.6% respectively, while magnesium accounts for 2.5%, copper accounts for 1.6%, chromium accounts for 0.23%, and finally the rest are silicon, manganese, titanium and other metal elements.
Generally speaking, the strength of 7075 aluminum alloy is higher than that of 6061 aluminum alloy, which is mainly because the content of aluminum alloy in 7075 aluminum alloy is nearly 8% less than that in 6061.
45 steel is generally applied to supports with limited data. (for example, there are few threads and the length is short. The whole strength needs to be guaranteed, which can not be achieved by aluminum alloy)

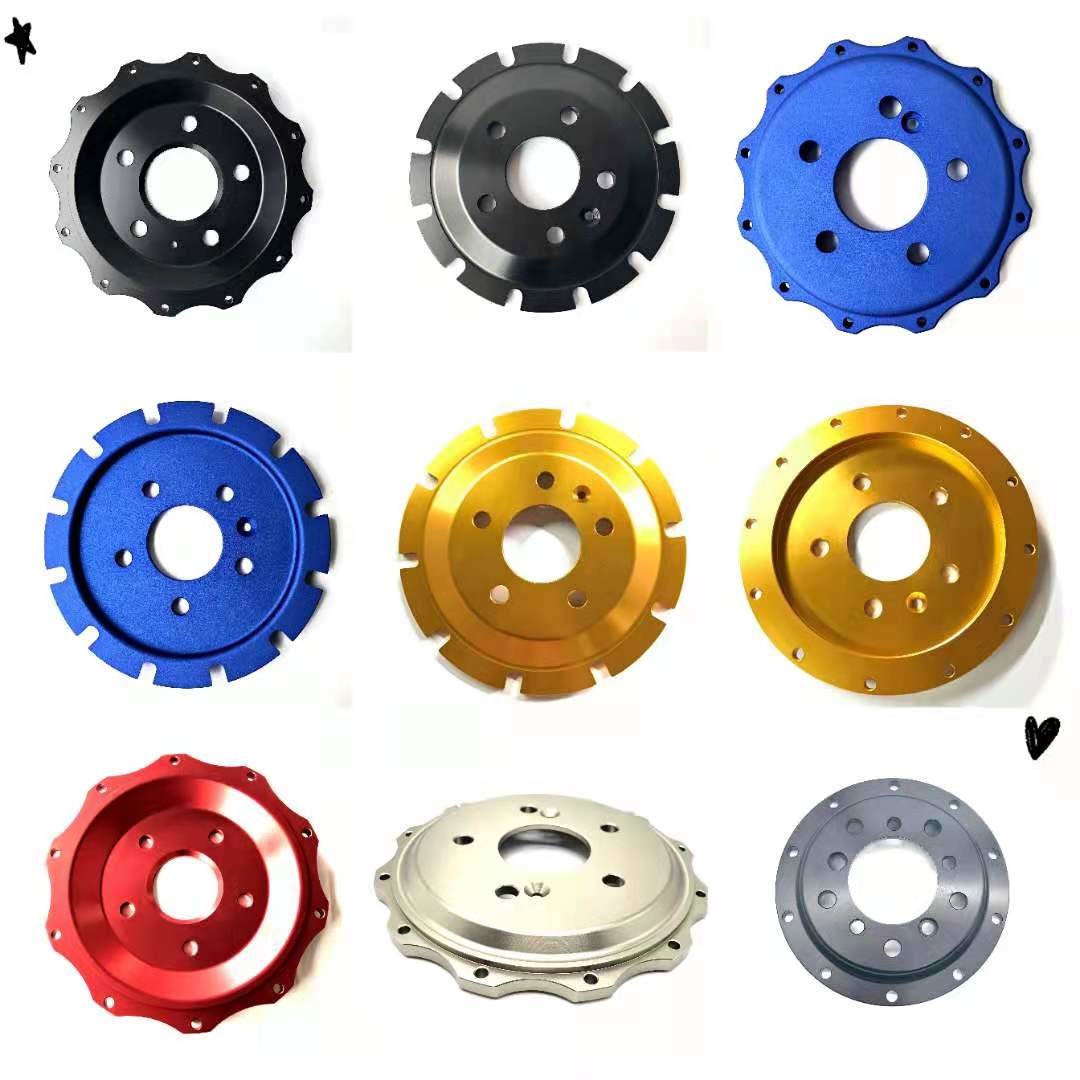

Center hat


Jekit has four different designs.
1. Pattern: unique nest fan diversion design, reducing weight by 35% and increasing heat dissipation area by 30%.
2. Original: round design, light weight.
3. With drum joint: generally applicable to the rear wheel of automobile.
4. Floating style, floating design, lighter weight, 50% increase in heat dissipation area, effectively improve heat dissipation effect and reduce jitter.



Anodic oxidation


Anodic oxidation has protective, decorative and insulating properties, which can improve the adhesion with organic coatings and inorganic coatings. The metal oxide film changes the surface state and properties, such as surface coloring, improves corrosion resistance, enhances wear resistance and hardness, and protects the metal surface.



If you need a complete modified caliper kit,Please contact customer service
Please provide:
1. What Car? What year?
2. Wheel hub size? For example, 18-inch 19-inch
3. Modified wheel hub or original wheel hub?
4.Can you give me the Chassis number or frame number(VIN number)?
5. If you need the center cap and bracket, we would like you to provide the diameter, thickness, friction surface data of the brake disc, as well as a picture of the caliper. Thank you
The above information is used for accurate recommendation of products and accurate quotation
