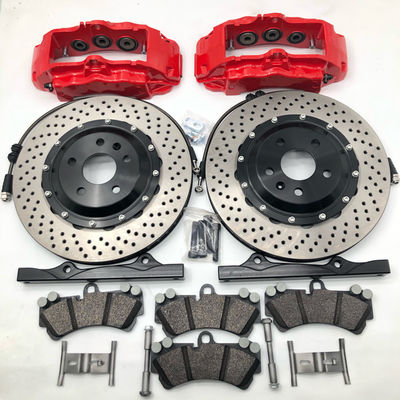

Volkswagen Scirocco 6 Pot Brake Kit R Front Red Porsche 18z Caliper 350x32 Rotor

Product Description

Volkswagen Scirocco R Front Red 6-Pot 18z Caliper 350x32 Rotor





Feature:

Disc size/mm: 350x32, 355*32, 362*32, 380*34, 405*34
Fit front or rear wheel Size: 18in, 19in, 20in, over 20 in
Function: 50% Improve Brake Performance



Caliper:



Material: One-piece Forged Body
Craft: Aerial 6082 Aluminum Alloy
Piston: 6 big pistons, Made of Aluminum Alloy
Finish Treatment: High-temperature Baking Coating



Brake pad:

Material: Ceramic graphite
Heat-resistant: 0-500 ℃
Friction Coefficient: 0.49

Rotor (disc+center bell):
Craft: By Forging
Plane Bounce: <0.03mm



Brake disc

Material:
1.Disc:High Carbon Iron HT250
2.Center bell : Aerial 6061 Aluminum Alloy



Bracket:

Material: Aerial 6061 Aluminum Alloy
Craft: By Forging



Brake hose:

Material: Inside special rubber; Outside wrapped with steel cover knitted by steel wires





Central cap classification



Jekit has four different designs.

1. Pattern: unique nest fan diversion design, reducing weight by 35% and increasing heat dissipation area by 30%.

2. Original: round design, light weight.

3. With drum joint: generally applicable to the rear wheel of automobile.

4. Floating style, floating design, lighter weight, 50% increase in heat dissipation area, effectively improve heat dissipation effect and reduce jitter.





Introduction to center cap and bracket



The center cap and caliper bracket are the components connecting the modified caliper to the vehicle. Each set of center cap and caliper bracket is customized according to the model, caliper model and disc data. Therefore, if you want the whole set of brakes to be perfectly installed in the wheel, the data requirements for the center cap and caliper support need to be very accurate.





Material classification(center cap and bracket)



Jekit's center cap and caliper support are mainly made of the following materials: aluminum alloy 6061-T6, aluminum alloy t-7075 and 45 steel.

Aluminum alloy has the characteristics of high strength, light weight and good heat dissipation. For the braking system, aluminum alloy has great advantages, so aluminum alloy is used in most cases.

6061-T6: aluminum alloy element accounts for 97.9%, magnesium element accounts for 1%, silicon element accounts for 0.6%, and 0.28% copper and 0.2% chromium are added.

T-7075: the main aluminum and zinc metal elements account for 90% and 5.6% respectively, while magnesium accounts for 2.5%, copper accounts for 1.6%, chromium accounts for 0.23%, and finally the rest are silicon, manganese, titanium and other metal elements.

Generally speaking, the strength of 7075 aluminum alloy is higher than that of 6061 aluminum alloy, which is mainly because the content of aluminum alloy in 7075 aluminum alloy is nearly 8% less than that in 6061.

45 steel is generally applied to supports with limited data. (for example, there are few threads and the length is short. The whole strength needs to be guaranteed, which can not be achieved by aluminum alloy)







Product Introduction



Item Name	18z Brake Kit
Pots	6 pistons
Caliper color	Yellow
Brake disc size	362*32mm
Disc type	J hook/Drilled/Grooved/Slot straight lines/custom disc type
For Wheel size	19rims
Full set included	brake caliper brake disc with center cap and bracket brake hose brake pads Center cap bolts and bracket bolts





Disc Brake

Brake rotors of disc brakes rotate with the wheels, and brake pads, which are fitted to the brake calipers, clamp on these rotors to stop or decelerate the wheels. sThe brake pads pushing against the rotors generate friction, which transforms kinetic energy into a thermal energy.

Brakes for Automobiles
Opposed Piston Type Disc Brakes
This thermal energy generates heat, but since the main components are exposed to the atmosphere, this heat can be diffused efficiently. This heat-dissipating property reduces brake fade, which is the phenomenon where braking performance is influenced by the heat. Another advantage of disc brakes is its resistance to water fade, which occurs when the water on the brakes significantly reduces braking force. When the vehicle is in motion, the rotor spins at high speeds and this rotational motion discharges the water from the rotors themselves, resulting in stable braking force.



Getting to Know Brakes｜Products and Technologies



Disc brakes are generally used in passenger cars, but due to their stable performance at higher speeds and resistance to brake fade, they are gradually spreading into the commercial vehicle segment, where drum brakes were traditionally chosen for their longer service life. There is increasing demand from customers for longer service life and higher quality, and Akebono is committed to meeting them through further development of the disc brake’s reliability. There are two types of disc brakes.

The "opposed piston type disc brake" has pistons on both sides of the disc rotor, while the "floating type disc brake" has a piston on only one side. Floating caliper type disc brakes are also called sliding pin type disc brakes.



Disc brake construction

The brake rotor (disc) which rotates with the wheel, is clamped by brake pads (friction material) fitted to the caliper from both sides with pressure from the piston(s) (pressure mechanism) and decelerates the disc rotation, thereby slowing down and stopping the vehicle.

How disc brakes work
When the driver steps on the brake pedal, the power is amplified by the brake booster (servo system) and changed into a hydraulic pressure (oil-pressure) by the master cylinder. The pressure reaches the brakes on the wheels via tubing filled with brake oil (brake fluid). The delivered pressure pushes the pistons on the brakes of the four wheels. The pistons in turn press the brake pads, which are friction material, against the brake rotors which rotate with the wheels. The pads clamp on the rotors from both sides and decelerate the wheels, thereby slowing down and stopping the vehicle.



Main components of disc brakes

Main components of floating type disc brakes

There are two types of disc brakes. One is called the "opposed piston type disc brake" which has pistons on both sides of the disc rotor, and the other is the "floating type disc brake" which has a piston on only one side. The floating type disc brakes are also called the sliding pin type disc brakes.

function of brake disc
The brake rotor (disc) which rotates with the wheel, is clamped by brake pads (friction material) fitted to the caliper from both sides with pressure from the piston(s) (pressure mechanism) and decelerates the disc rotation, thereby slowing down and stopping the vehicle.
