China 6 Pot Brake Kit manufacturer

BMW Red Brake Caliper Covers For 355x32mm Disc Drilled Slot

Product Details:
Place of Origin: China
Brand Name: Jekit
Model Number: 9040
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Factory price
Packaging Details: 40*40*40cm
Delivery Time: 5-7 days
Payment Terms: Western Union,Paypal, T/T
Supply Ability: 600 sets Per Month

Detail Information

Item Name: CP9040 Brake Kit Caliper Pots: 6 Pots
Disc Size: 355x32mm Disc Style: Drilled Slot/Type III
For Car: BMW/Audi/Toyota Center Cap Type: Round/Flower/Floating
Caliper Color: Red /blue Disc Materials: Grey Cast Iron
High Light:

BMW Red Brake Caliper


355x32mm Disc Brake Caliper Covers


BMW slotted disc brakes

Product Description

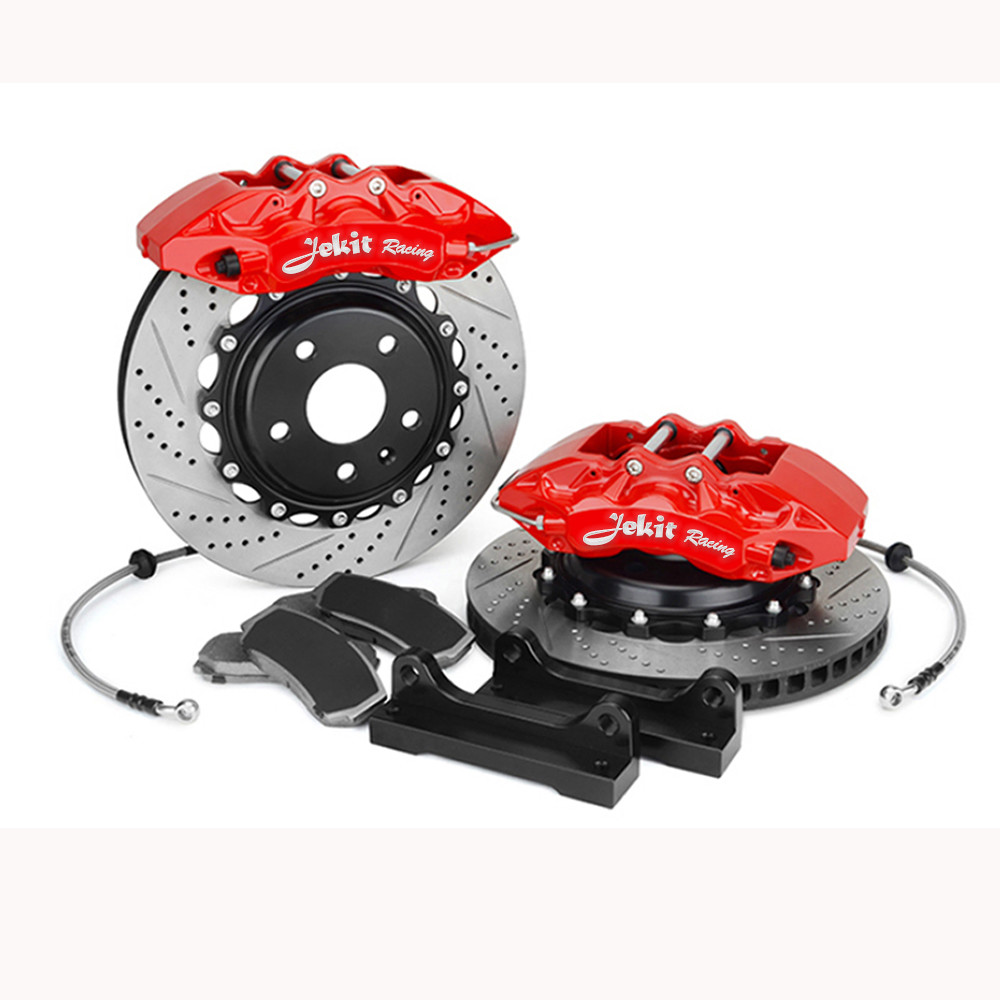

Jekit Red Brake Caliper 355x32mm Drilled Slot Disk Rotors Bell


product Introduction


Manufacturer Part Number-CP7040D61

Pad Information - Pad Area = 72.5cm²
- Pad Depth = 61.0mm
- Thickness = 16.8mm
Brake Piston Sizes - mm - Ø27.0 x 2.
- Ø31.8 x 2.
- Ø38.1 x 2
Piston Area - cm³ 50.1
Disc Diameter - mm 362mm
Disc Thickness - mm 32mm
Weight (no pads) - Kg 3.7kg
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres - mm 152mm
Mounting Offset - mm 53.2mm
Mounting Hole Ø - mm 12.1mm
‘PL’ Dimension - mm 68.8mm
Bleed Screw Tightening Torque 17Nm




- Performance Brake Kit front
- Factory Big Brake Kit caliper.




- Radial Mount, 152mm centres.
- Suits Ø362 x 32mm thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced gloss Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.



Applicable models


Mitsubishi triton/Jeep Grand Cherokee/Discovery/Audi /Honda/Seat Leon 2.0TFSI CUPRA/toyota corolla /lexus es250/new beetle/hayondai elantra /honda civic type R fn2/Honda civic type R EP3/Golf mk4 v6/golf mk4 v6/Passat cc tsi 2.0/ vw passat b5.5 2003



Why refit car brakes?


1. Weakness of original brake

     Because the original vehicle has long braking distance, heavy braking, unsatisfactory effect and service life, unstable braking and unable to brake the vehicle, the safety of continuous braking is reduced, and the original vehicle has large abnormal noise and poor heat dissipation.

     The biggest weakness of the original brake is that the braking force is too short from the initial state to the limit, which is called "very non-linear" in the language commonly used to describe the power. As the saying goes, stepping on the brake lightly is not enough, and stepping on the brake heavily is too much.
     For most of the original brakes, after you press the brake pedal to the bottom with one foot, the braking force generated by the brake system itself often far exceeds the friction limit of the tire. Therefore, the original brake can easily let the ABS system intervene in the work: when you brake to the bottom with one foot, you will always hear all kinds of "cluck cluck" noises of the ABS master cylinder, The brake pedal continuously feeds back the rebound strength, and the ABS system continuously performs the repeated action of "brake release brake release" on the brake caliper of each tire.


2. Modified brake kit to improve braking performance

    Compared with the original brake system, the modified brake kit has better braking performance




Our advantage:

1. Japanese technology, the price of Chinese factories
2. The price of the factory allows you to have enough profit
3. Inventory of brake pads, fast delivery
4. Professional supplier of performance auto parts. More than ten years of experience in auto parts technology, focusing on professionalism is worthy of your trust.





If you need full set brake kit for your car,Please send us inquiry
Please offer:

1. Car type/Car Year
2. Wheel rim size
3. Modified wheel rim or original wheel rim
4. Car Chassis number or frame number(VIN number)
Then we can give you suggestion and make kit fit for your car
