|Place of Origin:||china|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Delivery Time:||5-8 work day|
|Payment Terms:||T/T, Western Union,paypal|
|Supply Ability:||600sets/per month|
|Product Name:||6 Pots Brake Kit||Piston:||6 Pots|
|Rotor Size:||355x32/362X32mm||Calipers Color:||Red /yellow /black /green/custom Color|
|Disc Type:||J Hook /drilled /dragon Slot /slot /groove/Custom Design||Fit Wheel Size:||Rim 18|
|Car Model:||BMW E92 M3||Front Rear:||Front|
|Model||6 Pots Brake Kit|
|Weight (no pads) - Kg||7.8KG/pair|
|Number of pistons||Big 6 pistons|
|Suitable for wheels||suitable for 18 inches or more|
|Adaptation brake disc||
18 Inch 355*32mm
19 Inch 362*32mm
Processed according to customer needs

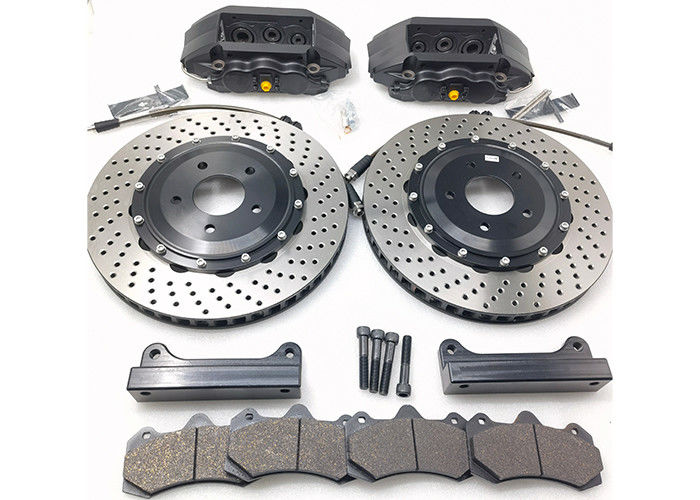

One set complete set brake kit including these parts
1 pair brake calipers
1 pair brake discs
1 pair brake disc bell
1 pair bracket
1 pair brake hose
1 set brake pads
- Performance Road Front.
- Factory Big Brake Kits.
- Radial Mount, 152mm centres.
- Suits Ø362 x 32mm thick discs.
- Cast two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Steel wear plates.
- Pad anti-rattle clip fitted.
Black Caliper Part Numbers:
- RHT = CP7040-2S0 / - LHT = CP7040-3S0.
- RHL = CP7040-4S0 / - LHL = CP7040-5S0.
Brake caliper size
|CALIPER TECHNICAL SPECIFICATIONS|
|Piston Sizes - mm||- Ø27.0 x 2 / - Ø31.8 x 2 / - Ø38.1 x 2|
|Piston Area - cm³||50.1|
|Disc Diameter - mm||Ø362.0|
|Disc Thickness - mm||32.0|
|Weight (no pads) - Kg||3.7|
|Mounting Centres - mm||152.0|
|Mounting Offset - mm||53.2|
|Mounting Hole Ø - mm||12.1|
|‘PL’ Dimension - mm||68.8|
|Bleed Screw Tightening Torque||17Nm|
|Pistons||- Ø27.0 = CP7040-118
- Ø31.8 = CP6609-106
- Ø38.1 = CP6200-104
|Seal Repair Kit||CP4525-CEJ|
|Pad Retainer Type / Part No||Pin / CP6600.-109 x 2|
|Wear Plates||CP7040-110 x 4|
Brake pad size
|Pad Thickness - mm (")||16.75 (0.66)|
|Pad Depth - mm (")||54.0 (2.12)|
|Pad Area - cm² (in²)||68.35 (10.59)|
|Friction Materials Available||APF404 / APF405 / DS2500 / DS25HP / DS3000|
|Fits Brake Caliper Family||CP7040|
Brake hose type
We can sell these caliper/pad/disc/center bell/bracket/brake hose seprately.
If you only need caliper. Please tell me caliper number
If you only need disc. Please tell me disc diameter and thickness
If you only need brake pad,Please tell pad number
If only need center bell, Please offer disc data(PCD/Locating Ring/Step/Depth/Holes Diameter)
If only need bracket, Please offer caliper measurement and disc diameter thickness
If you only need brake hose, Please offer car type/year
Generally we need car vin code to check if we have the car data. If no car data, If you can measure car data for us,
We can make custom kit for you
We also need to know your wheel rim size before give you suggestion. You can see rim wheel size on wheel tire
