China 6 Pot Brake Kit manufacturer

Black GTS6 6 Pistons Calipers For Audi S4 LC200 BMW Front

Product Details:
Place of Origin: China
Brand Name: Jekit
Model Number: GTS6
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Factory price
Packaging Details: Box Size 45*45*45cm
Delivery Time: 5-7 days
Payment Terms: Western Union, T/T,paypal
Supply Ability: 600 sets per Month

Detail Information

Item Name: GTS6 Caliper Caliper Pots: 6 Pots
Caliper Material: Aluminum For Car: Audi / Vw / BMW / Benz
Color: Black
High Light:

GTS6 6 Pistons Calipers


Audi S4 6 Pistons Calipers


LC200 6 Pistons Calipers

Product Description

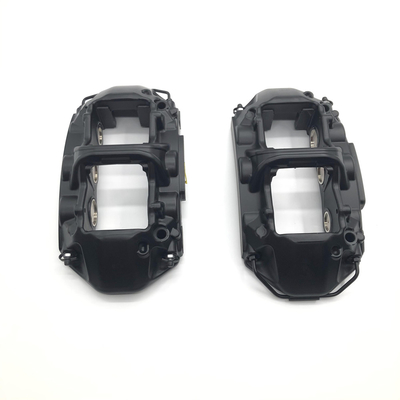

Black GTS6 6 Pistons Calipers For Audi S4 / LC200 / BMW Front




Disc size/mm: 355*32, 362*32, 380*34, 405*34
Fit front or rear wheel Size: 18in, 19in, 20in, over 20 in
Function: 50% Improve Brake Performance





Material: One-piece Forged Body
Craft: Aerial 6082 Aluminum Alloy
Piston: 6 big pistons, Made of Aluminum Alloy
Finish Treatment: High-temperature Baking Coating



Product introduction



 Product Name  6-pots caliper
 Piston Size  φ38,φ34,φ30
 Outline Size  330x165x98
 Brake Power
 Max Working Pressure  13.7MPa
 Asseblem Location  R/L
 Assembly Plate Bore Distance  200mm
 Brake disc Dia.  405mm 380mm 365mm 350mm 355mm
 Disc thickness  34mm 32mm
 Structure  monoblock
 Reference No.  GTS6

 Audi, , BMW, , Benz, , Ferrari, 360/430, Chevrolet,

 Camaro , Benz, AMG/CLS/E/SL, Porsche,

 996/997/Turbo/GT3/Cayenne, , Land Rover,

 Color  yellow red black nature
How to choose the combination of front and rear brakes

1. Select according to hub size
J value and et value shall be considered at the same time. If the corresponding space of the hub is insufficient, it will interfere and cannot be installed. It is also forbidden to cut the caliper body / hub due to size problems, which is very dangerous.

2.Front wheel refitting idea

15 inch options: Street version 7600 and competitive version 9444

17 inch options: Street version 9200 and competitive version 9440

18 inch optional: Street version 9040 9540 8530 competitive version 9448 9660 9665

Wheels over 19 inches can be selected: Street version 8520 8521 8522 (referred to as 85 series, with different piston area of the same shape)

Street version 9560 9561 9562 (referred to as 95 Series, with different piston areas of the same shape)


3.Rear wheel modification idea (the front wheel shall be determined first, and then the corresponding ratio shall be made)

Front four pistons: 9200 8530 9540 rear two pistons: 5317

Front six pistons: 9040 rear four pistons: 9202 / 7609

Front six pistons: 8520 8521 8522 rear four pistons: 8530 / 8540 / 8560

Front six pistons: 9560 9561 9562 rear four pistons: 9541 / 9542

The collocation needs to follow the first six rear four front four rear two front big four rear small four (the car power needs to be distributed, and so does the braking force)



If you need a complete modified caliper kit,Please contact customer service
Please provide:
1. What Car? What year?
2. Wheel hub size? For example, 18-inch 19-inch
3. Modified wheel hub or original wheel hub?
4.Can you give me the Chassis number or frame number(VIN number)?
The above information is used for accurate recommendation of products and accurate quotation
