China 6 Pot Brake Kit manufacturer

650mm Corrosion Resistant Steel Braided Brake Hose High Temperature Resistant

Product Details:
Place of Origin: China
Brand Name: Jekit
Model Number: jkBH002
Payment & Shipping Terms:
Minimum Order Quantity: 1pair
Price: Factory price
Packaging Details: 15*15*15cm
Delivery Time: 5-7 days
Payment Terms: Western Union,Paypal, T/T
Supply Ability: 600 pair per Month

Detail Information

Item Name: Brake Oil Pipeline Length: 65CM
Warranty: 1 Year Type: Convex Mouth
For Car: Many Car Model For Hub: Front Wheel
Color: Black Materials: Stainless Steel And
High Light:

Corrosion Resistant Steel Braided Brake Hose


650mm Steel Braided Brake Hose


650mm Front Brake Hose

Product Description

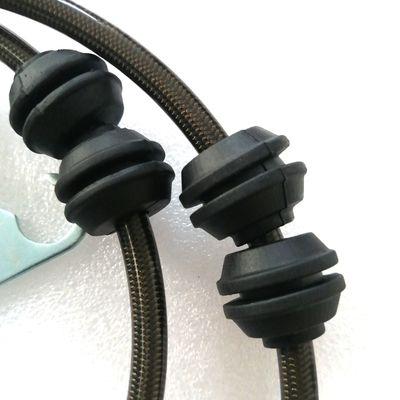

Front Brake Hose Line 65mm Convex Mouth Car Steel Braided Brake Hose


Why upgrade the brake hose


Most of the original vehicle brake tubing is made of rubber material,the long time will aging, expansion, especially after 2-3 years of use, in high frequency, continuous brake, the defect will be more and more obvious.



Product advantages


High temperature resistancet : it can withstand 200-280° high temperature for an ultra long time. At low temperature-60°,the soft praperty can still be maintained.

Anti aging : Use high quality anti-aging materials .

Corrosion resistance  : Apply to all grade brake oll.

High degree of lubrication : Low friction coefficient and high brake oil flow rate.

Cohesionless : It has small surface tension and does not absorb other Impurities.



Installation instructions


Jekit. 1 recommend that if you are in ang doubt,this should be fitted by a qualified mechanic


1. Before removing existing line(s),check that the line(s) suplied are tne correct length ang the banjo alignments are correct .( Please note certain kits do not route as per originals, depending on the kit purchased).

2. Drain the system of brake fluid( as per the manufacturer's recommended method). Carefully remove existing brake line( vehicle, avoiding splashing paintwork with brake fluid, noting positions of C-clip(s) , bracket(s) and banjo (s) , ifequipped . Remove al crush washers from their mating surfaces . Each kit wil arrive with all necessary OEM replacement adaptors and banjo bolts.

3. Ensure all sealing surfaces are clean and in good condition

4. Fit Jekit . 1 line(s) , starting from the caliper and following the path of the original line(s) . Always use the new crush washers supplied with the kit. (Certain vehicles, e.g. /. use two different thread pitches for bolts throughout) Ensure all locating tab(s) and mounting bracket(s)are properly attached to their mating points on the frame or chassis and are not introducing tension on either end of the connection.

5. Do not fully tighten the banjo bolt(s) or threaded line ends until stage 6 has been completed.

6. Jekit . 1 line(s) are designed to replace original line(s) . Check the line(s) for clearance and correct lengths. The line(s) should be installed without any twists or kinks. The opposite axis torque ines iffeatured) should remain parallel along the entire length of the ine (s) . Full travel of the suspension and steering must be checked to ensure the ine(s) are not stretched or trapped.

7. Tighten the banjo bolt(s) and end fitting(s) . Bolt(s) should be tightened to the following torque :


  Min (ft-Ibs)/Nm Max Plated (ft-Ibs)/Nm Max S/Steel (ft-Ibs)/Nm
Fittings 12/17 16/22 24/33


8. These torque settings are factory tested to the specified material of the fitting(s) on your Jekit. 1 brake line kit. TIhey are not specified to the master cylinder, calipers or any other on your venice. Please referto the manufactur for there torque settings.

Bleeding the brake system. The system is now ready to be bled. Fresh brake fluid should be used and the system bled in accordance with the manufacturer's recommendations.





Brake hose is divided into front and rear wheels, please confirm before ordering
Please contact the seller to confirm the model before ordering


650mm Corrosion Resistant Steel Braided Brake Hose High Temperature Resistant 0650mm Corrosion Resistant Steel Braided Brake Hose High Temperature Resistant 1650mm Corrosion Resistant Steel Braided Brake Hose High Temperature Resistant 2
